45N 118N 177N Lifting Force Test Block Lift Test Weight MPI Weight Lift Block MPI Test Block

Application:

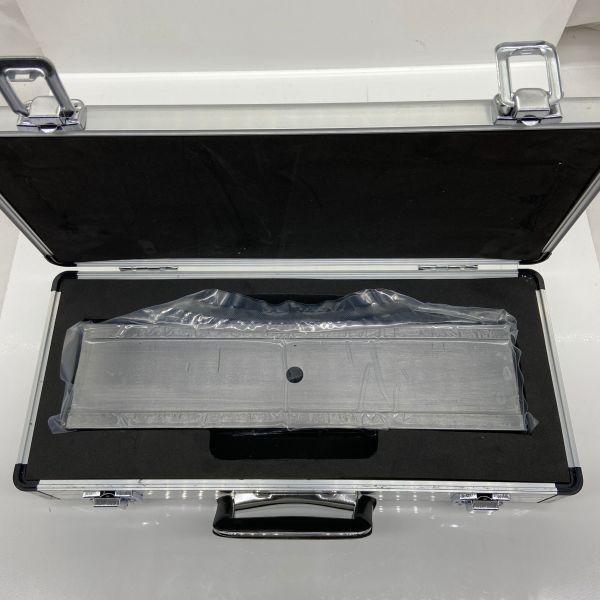

45N 118N 177N Lifting Force Test Block Lift Test Weight MPI Weight Lift Block MPI Test Block, It is used to verify the lifting force of the horseshoe probe. There is a work-related injury on the surface. It is used for magnetic particle inspection inspection and testing to effectively check the lifting force of the inspection instrument and the lifting force of the horseshoe probe.

Detailed description:

I. Introduction and requirements of N1 45N magnetic particle lifting force test block:

1.N1 type 45N magnetic particle lifting force refers to the magnetic yoke of portable magnetic particle testing machine at the maximum magnetic pole spacing, the attraction to ferromagnetic materials.

2. The lifting force of the magnetic yoke depends on the cross-sectional area of the magnetic yoke core, the magnetic properties of the core material and the size of the excitation specification.

3. The lifting force of the magnetic yoke reflects the attraction of the magnetic yoke when the peak value of magnetic induction intensity B reaches a certain size.

4. When the magnetic yoke is used at the maximum spacing, the AC electromagnetic yoke should have at least 45N lifting force; DC electromagnetic yoke should have at least 177N lifting force; The cross magnetic yoke should have a lifting force of at least 118N (the gap between the magnetic pole and the workpiece surface is 0.5mm).

II. Implementation standard and material of N1 45N magnetic powder lifting force:

Comply with the ASME; JB/T6066-200

Material: 45 steel

III. Specifications:

Type N1:45N lifting force test block, 5KG.

Type N2: 118N,12KG.

Type N3:177N,18KG.

Other MT standard block

Katos rong type B: DC HRC=90～95, 12 drilling through holes diameter 0.07inch, center hole diameter 31.8mm

Type E: AC
