Color LCD Rechargeable Batt Handheld Metal Hardness Testeing
Portable Hardness Testers For Metal
Normal Material can be tested by Hardness tester RHL60:
Steel and cast steel, alloy tool steel, stainless steel, gray cast
iron, nodular cast iron, cast aluminum alloy, copper zinc alloys
(brass), copper and tin alloy, copper (bronze), forged steel.
Extra hardness scales can be tested:by Hardness tester RHL60
CWT, ST material add HRA, HB for D impact device
C. ALUM material add HV. for D impact device
C. ALUM material add HV. for C impact device
New developed function of user defined material, which realize
special material measurement, widely expand the application range
of Leeb hardness testing
added 3 materials for the roller hardness tester(optional): cast
steel roller, forged steel roller, cast iron roller
Hardness tester RHL60 application
Can test hardness of the installed machinery and permanently
assembled parts
Can test hardness of die cavity of molds
Can test hardness of heavy work piece
Hardness testing for failure analysis of pressure of steam
generator and other parts.
Can test hardness of work piece in confined spaces
Can test hardness of bearing and other parts.
Can test hardness of usage when original hardness testing data
report are request
Can test hardness of metal material distinction in warehouse
Can test hardness for quick inspection of multiple measuring area
in wide range of large work piece.
Technical Parameters for Hardness tester RHL60
| Testing Range | HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042),
HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) |
| Testing Direction | 360° |
| Hardness Scales | HL, HB, HRB, HRC, HRA, HV, HS |
| Testing result on display | HL value and the corresponding value of selected hardness scale. |
| Testing Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast
iron, nodular cast iron, cast aluminum alloy, copper zinc alloys
(brass), copper and tin alloy, copper (bronze), forged steel. added 3 materials for the roller hardness tester(optional): cast
steel roller, forged steel roller, cast iron roller |
| User defined material | 5 kind. With setting guide |
| Display | 320x240 true color TFT screen |
| Indication Error | ±6HLD (D impact device) |
| To identify probe | automatically, or by manual. |
| Data Memory | Max 600 groups (relative to impact times 1~32 adjustable) |
| Power supply | Rechargeable li-battery, 3.7v |
| charger | 5V/1000mA, charging time 2.5～4.5 |
| Communication port | USB2.0 |
| Size | 130x83x32mm |
| Weight | 0.6kg |
| Working Condition | working temperature: -20°C~55°C storage temperature: -20°C~75°C relative humidity: ≤90％ The surrounding environment requires no vibration, no strong
magnetic field, no corrosive medium and no serious dust |
Main features
- DISPLAY shows 2 scales : the hardness scale of Leeb and the other corresponding scale.
- This hardness tester can test many kinds of metal materials with
high precision.Accord with standard JB/T 9378-2001 in [Technical
conditions of Leeb hardness tester].
- Dedicated circuit design, probe hot plug support.
- Seven impact devices are available for special application; Support plug
and play. it can automatically identif impact device and can set by
manual as well. No need calibration when probe changes.
- Ten commonly used material of hardness scale(HL, HB, HRB, HRC, HRA,
HV, HS) parallel conversion.
- Added 3 materials for the roller hardness tester(optional): cast
steel roller, forged steel roller, cast iron roller: cast steel
roller, forged steel roller, cast iron roller. it can take quick measurement for roller.
- Five (1-5)user's materials can be defined for hardness testing of
special materials. Theoretically, this tester tests all metal
materials.
- Built in lithium ion battery; up to 50 hours continuous work; with
auto sleep, auto power off, power-saving features.
- Adopt 320X240 true color large TFT display.
- Windows menu. Support 6 language freely switch. User friendly
features, easy to operate.
- the Brightness of LCD allows adjustable, it improves visibility in
dark environments.
- Material of 'steel' is added; HB values can be read out directly
when D/DC impact device is used to measure “steel” work piece.
- USB port. Convenient communication with PC to exchange data and set
parameter.
- Large memory up to 600 group hardness data( impact times:32～1), it
include: the last testing value, average value, testing date,
impact direction impact times, material, hardness scale, etc
- it can automatically alarm when values are out of pre-set range,
which is convenient for the requirements of batch measurements.
- Metal case, anti-electromagnetic interference, shock resistant.
- There are remaining charge indicator, charging hint.
- Features calibration function.
- Software of PC can be installed according to the requirements of
user, the function will be more powerful to satisfy the more strict
demands of quality control and management.
- Add user defined material.
Standard Delivery
| ITEM | QTY |
| Main unit | 1 PC |
| Standard D Impact Device | 1 PC |
| Standard Calibration Block | 1 PC |
| Standard Support Ring | 1 PC |
| Brush | 1 PC |
| USB Cable, charger | 1 PC |
| PC Software | 1 PC |
| User Manual | 1 PC |
| Instrument Case | 1 PC |
| Warranty | 2 Years |
OPTIOANL CONFIGURATION
hardness testing for roller, mini printer, shaped support ring
| No. | Type of impact device | hardness value of standard Leeb hardness block | Error of displayed value | Repeatability of displayed value |
| 1 | D | 760±30HLD 530±40HLD | ±6 HLD ±10 HLD | 6 HLD 10 HLD |
| 2 | DC | 760±30HLDC 530±40HLDC | ±6 HLDC ±10 HLDC | 6 HLD 10 HLD |
| 3 | DL | 878±30HLDL 736±40HLDL | ±12 HLDL | 12 HLDL |
| 4 | D+15 | 766±30HLD+15 544±40HLD+15 | ±12 HLD+15 | 12 HLD+15 |

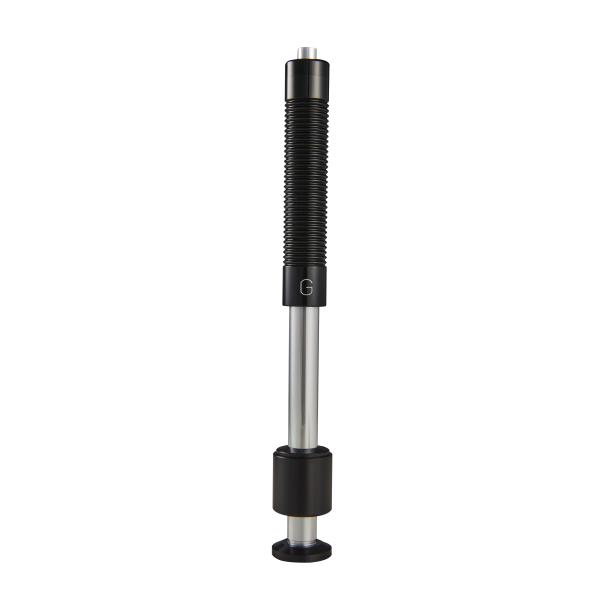

| 5 | G | 590±40HLG 500±40HLG | ±12 HLG | 12 HLG |
| 6 | E | 725±30HLE 508±40HLE | ±12 HLE | 12 HLE |
| 7 | C | 822±30HLC 590±40HLC | ±12 HLC | 12 HLC |
RELATED OPTIONAL ITEMS
| Type of Impact Device | DC(D)/DL | D+15 | C | G | E |
Impacting energy Mass of impact body | 11mJ 5.5g/7.2g | 11mJ 7.8g | 2.7mJ 3.0g | 90mJ 20.0g | 11mJ 5.5g |
Test tip hardness: Dia. Test tip: Material of test tip: | 1600HV 3mm Tungsten carbide | 1600HV 3mm Tungsten carbide | 1600HV 3mm Tungsten carbide | 1600HV 5mm Tungsten carbide | 5000HV 3mm synthetic diamond |
Impact device diameter: Impact device length: Impact device weight: | 20mm 86(147)/205mm 50g | 20mm 162mm 80g | 20mm 141mm 75g | 30mm 254mm 250g | 20mm 155mm 80g |
| Max. hardness of sample | 940HV | 940HV | 1000HV | 650HB | 1200HV |
| Mean roughness value of sample surface Ra: | 1.6μm | 1.6μm | 0.4μm | 6.3μm | 1.6μm |
Min. weight of sample: Measure directly with stand Need coupling tightly | >5kg 2～5kg 0.05～2kg | >5kg 2～5kg 0.05～2kg | >1.5kg 0.5～1.5kg 0.02～0.5kg | >15kg 5～15kg 0.5～5kg | >5kg 2～5kg 0.05～2kg |
Min. thickness of sample Coupling tightly: Min. layer thickness for surface hardening: |
5mm
≥0.8mm |
5mm
≥0.8mm |
1mm
≥0.2mm |
10mm
≥1.2mm |
5mm
≥0.8mm |
| Size of tip indentation |
| Hardness 300HV | Indentation diameter: Depth of indentation: |
0.54mm
24μm |
0.54mm
24μm |
0.38mm
12μm |
1.03mm
53μm |
0.54mm
24μm |
| Hardness 600HV | Indentation diameter:
Depth of indentation |
0.54mm
17μm |
0.54mm
17μm |
0.32mm
8μm |
0.90mm
41μm |
0.54mm
17μm |
| Hardness 800HV | Indentation diameter:
Depth of indentation |
0.35mm
10μm |
0.35mm
10μm |
0.35mm
7μm |
--
-- |
0.35mm
10μm |
| Application | DC type used to measuring hole or inside face of cylinder, DL type used to measuring elongated narrow slot or hole, D type for routine measurements. | Suitable for measuring surface of the trench or concave. | Suitable for measuring thin workpiece and harden surface. | Suitable for heavy or rough castings and forgings. | Suitable high hardness material. |
Testing range see table 1 and table 2.
Table 1
Material | Hardness method | Impact device |
D/DC | D+15 | C | G | E | DL |
Steel and cast steel | HRC | 17.9～68.5 | 19.3～67.9 | 20.0～69.5 | | 22.4～70.7 | 20.6～68.2 |
HRB | 59.6～99.6 | | | 47.7～99.9 | | 37.0～99.9 |
HRA | 59.1~85.8 | | | | 61.7～88.0 | |
HB | 127～651 | 80～638 | 80～683 | 90～646 | 83～663 | 81～646 |
HV | 83～976 | 80～937 | 80～996 | | 84～1042 | 80～950 |
HS | 32.2～99.5 | 33.3～99.3 | 31.8～102.1 | | 35.8～102.6 | 30.6～96.8 |
Hammered steel | HB | 143~650 | | | | | |
Cold work tool steel | HRC | 20.4～67.1 | 19.8～68.2 | 20.7～68.2 | | 22.6～70.2 | |
HV | 80～898 | 80～935 | 100～941 | | 82～1009 | |
Stainless steel | HRB | 46.5～101.7 | | | | | |
HB | 85～655 | | | | | |
HV | 85～802 | | | | | |
Gray cast iron | HRC | | | | | | |
HB | 93～334 | | | 92～326 | | |
HV | | | | | | |
Nodular cast iron | HRC | | | | | | |
HB | 131～387 | | | 127～364 | | |
HV | | | | | | |
Cast aluminum alloys | HB | 19～164 | | 23～210 | 32～168 | | |
HRB | 23.8～84.6 | | 22.7～85.0 | 23.8～85.5 | | |
Brass(copper-zinc alloys) | HB | 40～173 | | | | | |
HRB | 13.5～95.3 | | | | | |
Bronze (copper-aluminum/copper-tin alloys) | HB | 60～290 | | | | | |
Wrought copper alloys | HB | 45～315 | | | | | |
Table 2
No. | Material | HLD | Strength σb(Mpa) |
1 | Mild steel | 350～522 | 374～780 |
2 | High-carbon steel | 500～710 | 737～1670 |
3 | Cr steel | 500～730 | 707～1829 |
4 | Cr-V steel | 500～750 | 704～1980 |
5 | Cr-Ni steel | 500～750 | 763～2007 |
6 | Cr-Mo steel | 500～738 | 721～1875 |
7 | Cr-Ni-Mo steel | 540～738 | 844～1933 |
8 | Cr-Mn-Si steel | 500～750 | 755～1993 |
9 | Super strength steel | 630～800 | 1180～2652 |
10 | Stainless steel | 500～710 | 703～1676 |
Function:
On-line measuring management
Various function keys of data test, store, read, delete, clear,
print, input and output to excel etc.
PC Software sample
Key words:Hardness Tester, Leeb Hardness Tester, Portable Hardness
Tester, Portable Hand Held Leebs Metal Hardness Testers, Portable,
Hardness Testers, hardness testing equipment, hardness testing
machine, ndt, non destructive testing, ndt testing, impact device,
Leebs, ASTM Standards, HRC, HRB, HRA, HB, HV, HS, HLD, hardness
values, DIN 53505, ASTM D2240, ISO 7619
