3D XYZ 3 Axis Piezoelectric Accelerometer Pocket Vibration Meter Piezoelectric Vibration Sensor

Main application:

The vibration meter HG-6380 used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

HG-6380 is specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

HG-6380 uses the high-performance acceleration meter, can realize the repetitiveness and accurate measurement.

It has the function of testing axle bearing situation.

Specification of 3D HG-6380 vibration meter:
Vibration Sensor:3-Axis Piezoelectric accelerometer
Display Screen: 4 digit LCD backlit
Axial Vibration: any one axis of X ,Y,Z or 3 axes of XYZ
Measurement Range:
Velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration : 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
Displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy: 5% of reading + 2 digits
Metric and Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: RS232C or USB or Bluetooth interface (Cable and software are optional)
Power supply: 2x1.5v AA size (UM-3) batteries
Power off : Manual off at any time or auto power off is enabled by user
Operating conditions:
Temperature : 0-50 ℃ Humidity : below 95% RH
Dimensions: 124x62x30mm/4.9x2.4x1.2 inch
Weight: 120g (not including batteries)

Standard delivery:
Powerful rare earth magnet 1 pc.
Accelerometer 1 pc.

Stinger probe (Cone) 1 pc.
Stinger probe (Ball) 1 pc.
Carrying case 1 pc.
Operation manual 1 pc.
Optional accessories: Headphones for use as electronic stethoscope
Cable and software for RS232C, USB cable with software, bluetooth with software

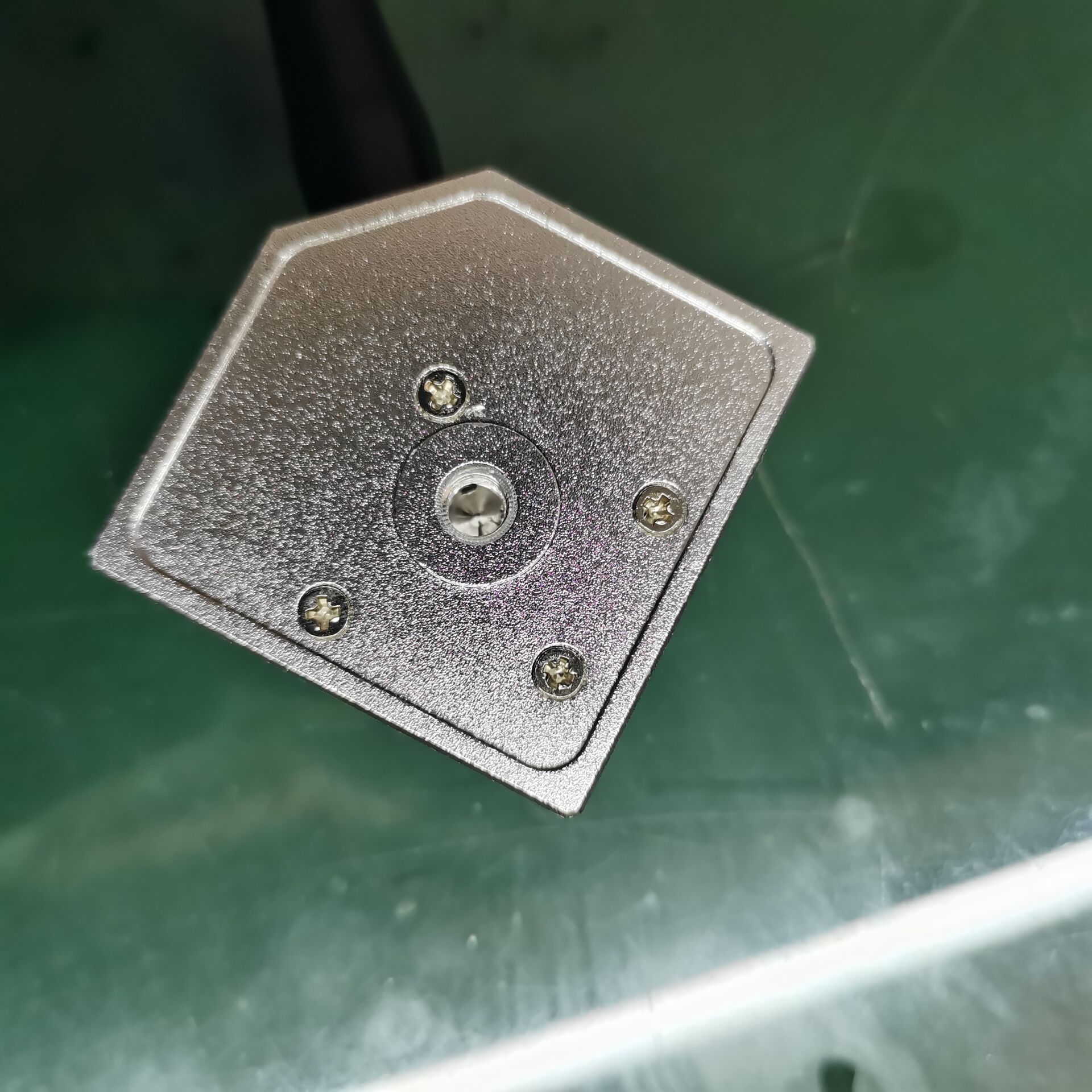

3D vibration senson photos:
