MT GS Conversion DC AC Magnetic Field Desk Type Precision Mill
Gauss Meter HGS-20C
HGS-20C desktop digital Gauss meter can be used to measure DC, AC
magnetic field. Mainly used in the surface magnetic field of
permanent magnet materials, DC motor, loudspeaker, magnetic
separator, permanent magnet remover working magnetic field. In
addition, it can be used to detect the residual magnetism of items
after machining, detect the distribution of magnetic poles, detect
the residual magnetic field of products after demagnetization,
control the magnetic condition of electroplating items, detect the
magnetic flux of motors, and detect the magnetic leakage of
electromagnetic fields. And the magnetic induction intensity of
various magnetic fields. The instrument has wide range, easy
operation and clear LCD display. It is a special instrument for
detecting the intensity of various magnetic fields in space.
Range of application
It is used to measure the surface remanence and dc magnetic field
of steel tube, cast iron and other workpieces. The hall sensor can
be equipped with longitudinal and transverse sensors according to
customers' requirements.
Technical indicators
Range: 0~200mT~2000mT
Basic error: ±2% ±3 words (less than 1000mT)
±5% ±3 words (over 1000mT) (can be made by basic error ±1% upon
request)
Distinguishing power: 0.01mT, 1mT
Magnetic field measured: DC magnetic field (static magnetic field),
AC magnetic field (dynamic magnetic field)
Function description: With hold, AC LCD display. With sorting
function (by setting the upper and lower limits of the measured
magnetic field on the panel, you can light up when measuring high,
low, qualified) MT GS conversion.
Ambient temperature: 5 ° C to 40 ° C
Relative humidity: 20%~80% (no condensation)
Power supply: AC220V 50Hz
Size: 230mm×205mm×80mm
Instrument weight: 1.5Kg
Display mode: 41/2 LCD, N,S pole automatic display
Display unit: MT GS Note: 1mT=10Gs
Operation request:
- Magnetic field distribution of material surface
- Working magnetic field produced fro some instrument that as
iron-removing device,magnet-selecting machine, magnet chuck, magnet
spool and demagnetizing coil
- Leakage Magnetic iron-surface
- Do not use the instrument in unappropriate conditions.
If you find the value of testing were error in the status
ofmeasurement,

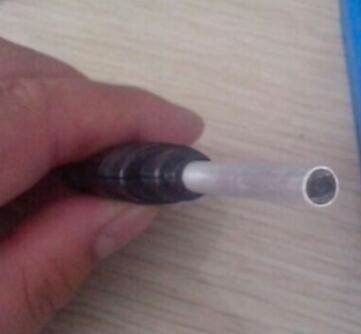

you could loosened the handle of the probe to adjust the screw of
the resistance tinily.
If don’t ensure that the instrument is operated correctly described
below, there would be error or mistake
Don’t attempt to repair, or disassemble, and any reconstruct this
instrument.
- Use only recommended power accessories.
- Don’t connect the terminals of the outer power supply reversely.
the inner is plus, the outer is minus.
- Don’t drop this instrument or the probe down ground. It’ll be
damaged by strong vibration.
- Do not allow hands or other objects with dirt to touch the probe.
- Avoid using, placing or storing the instrument in places subject to
strong sunlight or high temperature, so as to humidity, water, oil,
rust air, vibration and others.
