    Unique Measurement Conversion Device , 100X 50Hz / 60Hz Vickers Hardness Tester

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HV-30
    Delivery Time : 1-4days
    Payment Terms : T/T, Paypal, Western Union
    Certification : ISO, CE, GOST
    Supply Ability : 500pcs per month
    • Product Details
    • Company Profile

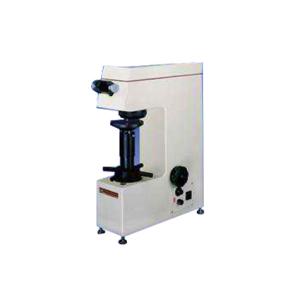

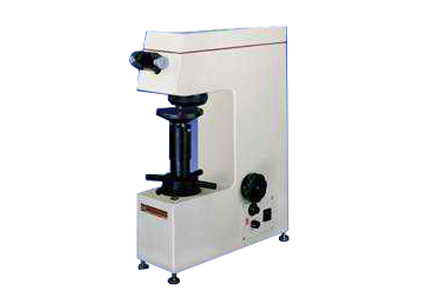

    Unique Measurement Conversion Device , 100X 50Hz / 60Hz Vickers Hardness Tester

    Unique Measurement Conversion Device , 100X 50Hz / 60Hz Vickers Hardness Tester
    Main Features
    * Automatic loading and releasing mechanism
    * Adjustment of lighting source via hardware
    * Adjustment of pressure holding time (0~30s)
    * Unique measurement conversion device and unique micro eyepiece one- time measurement readout device, ensuring easy use and high accuracy
    * The tester is specially designed for testing minute, thin samples or parts after surface coating or general mechanic cal part
    Technical specifications
    Test Load
    19.6N(2kgf), 29.4N(5kgf), 98.0N(10kgf), 196N(20kgf), 294N(30kgf), 490N(50.0kgf)
    Hardness value symbol
    HV2, HV3, HV5, HV10, HV20, HV30
    Error range in display
    ±3.0%
    Hardness value range in measure
    10HV2~2500HV30~2.0%
    Pressure loading & unloading method
    Automatic
    Magnification of microscope
    100X
    Pressure holding time
    0~30s (5 second as input increment)µ m
    Minimum measurable unit
    1µm
    Maximum height of sample
    150mm
    Distance from indenter's center to outer wall
    130mm
    Main unit weight
    Approx.38Kg
    Power source
    AC220V/110V 50Hz/60Hz
    Machine size(L x W x H)
    452 x 200 x 620mm
    Standard delivery
    • Vickers indenter 1
    • Weight 3
    • Power cable 1
    • Lamp 2
    • Certificate 1
    • Manual 1
    • Test table (big, medium, small) 1each
    • Horizontal regulating screw 4
    • Vickers test block (high, medium) 1 each
    • Measuring microscope 1
    • Object lens 10X, 25X 1 each

    Optional accessories
    • Forcipate test table
    • Cylindrical test table
    • X-Y plotter
    • Gradienter
    • Knoop indenter
    • Digital camera
    • Shutter line
    • Magazine
    • Special single page magazine
    • Photographic eye piece
    • Fine specimen measuring test table
    • Main body of photographic instrument linker
